Learn more about the ESPINEA® Training Tools

joimax® offers highly specialized products for endoscopic minimally invasive spinal procedures, displaying its strength in the development of instruments, methods and devices. Our surgical solutions ensure the most gentle treatment, always keeping the best interest of our patients in mind. The outstanding quality of our products is guaranteed by a certified Quality Management System according to international standards. Additionally, all products are “Made in Germany” or “Engineered in Germany”. Responding to the divergence of spinal related diagnoses, with each diagnosis and vertebral segment containing its unique challenges, joimax® is constantly expanding its range of methods, instrument sets and corresponding electronic device.

Spine Models

Visualize spinal anatomy and pathologies, to show and explain options for an endoscopic access.

3D Demo Endoscopes

Practice or demonstrate endoscopic skills, views and handling options with the demo endoscope – simply connected to a computer or mobile device.

Tissue Models

Train or demonstrate endoscopic methods step-by-step at the lumbar spine.

Real Spine model

Train or demonstrate endoscopic methods step-by-step at the lumbar spine.

EndoTrainer Plus

Realistic anatomical spine model for endoscopic approaches

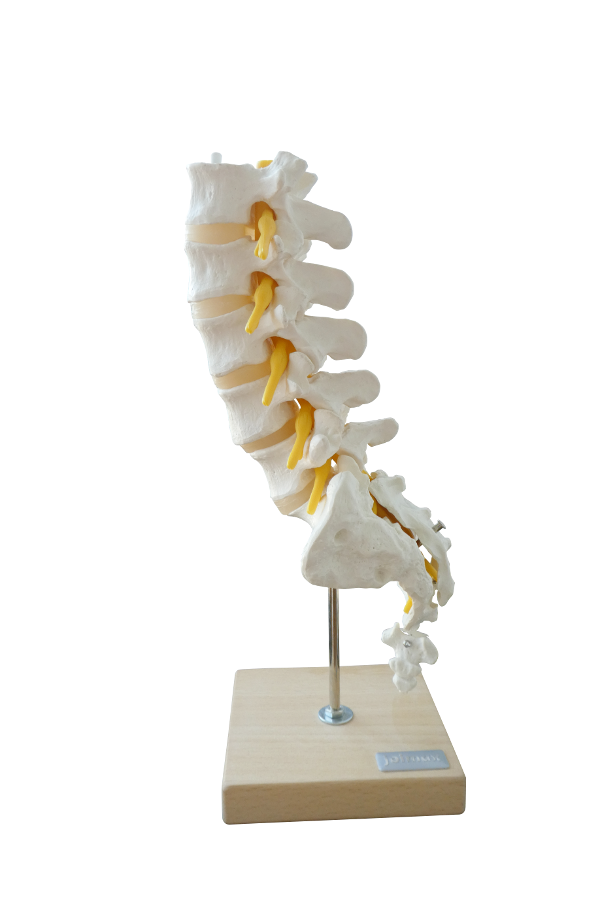

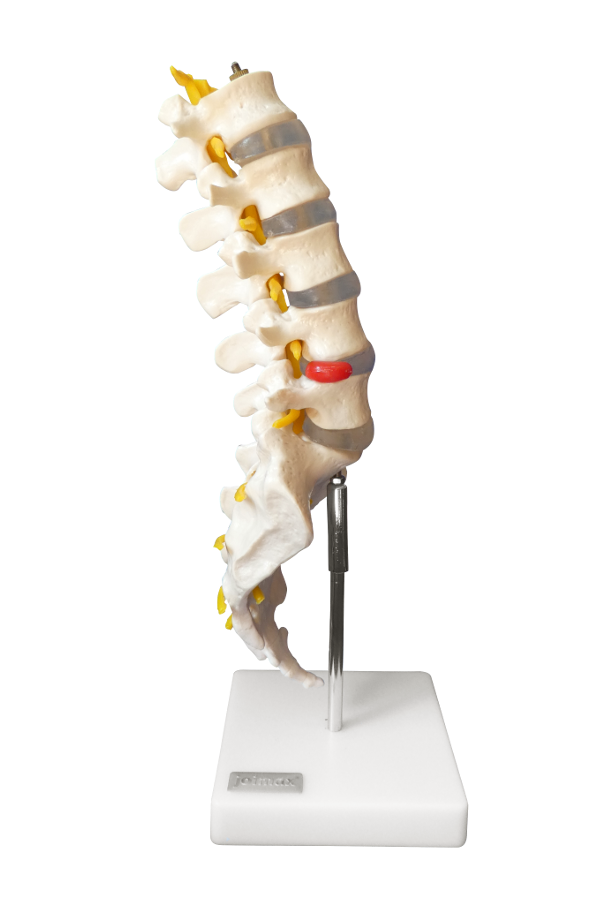

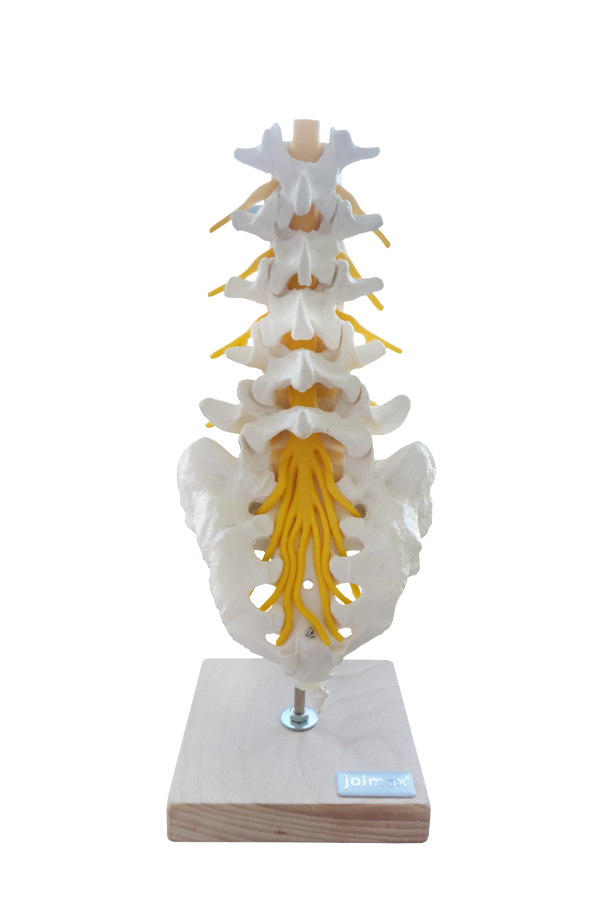

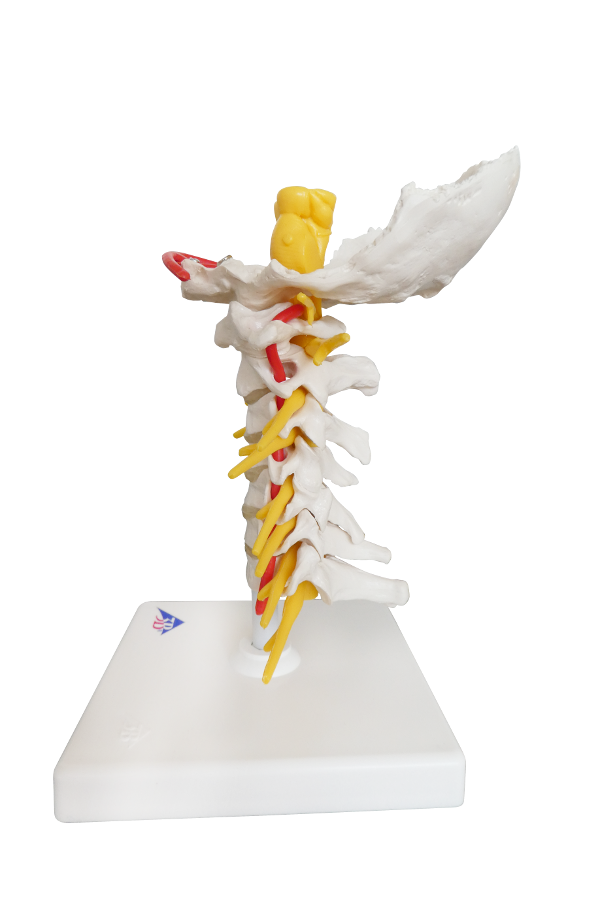

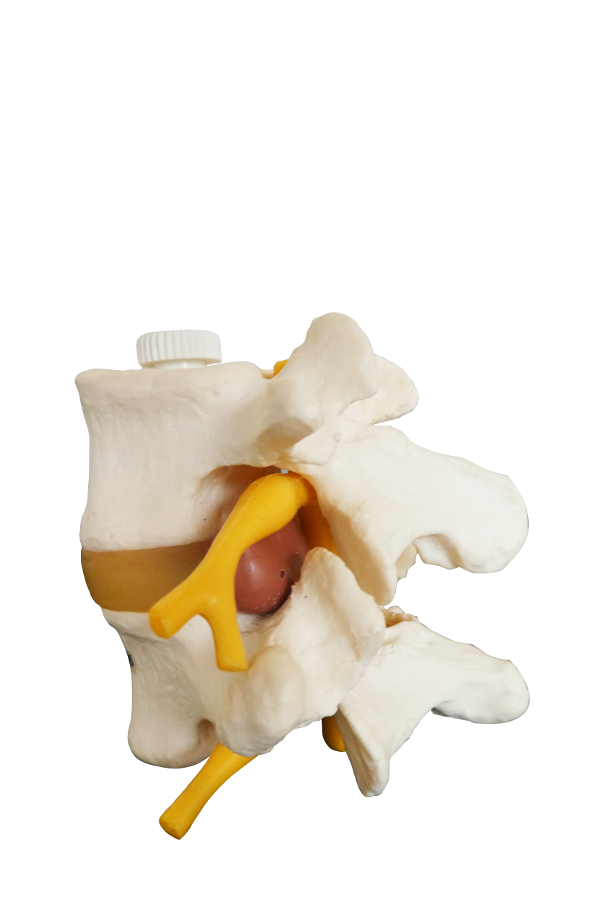

SPINE MODELS

These models are for demonstration of spinal structures and proportion size of instruments (CESSYS® , TESSYS® , iLESSYS® , MultiZYTE® ). Visualization of anatomy and pathologies, demonstration of options for an endoscopic access and illustration of structures, such as the Kambin Triangle.

3D Demo endoscopes

The Demo Endoscope allows clinicians to practice initial endoscopic skills. Connected to a computer or mobile device, it is a simple way to demonstrate the endoscopic approach to a team or to patients. Use the demo endoscope with a spine model to practice your endoscopic skills in a very handy and simple way and challenge your eye-hand coordination.

SPECIFICATIONS​

  • The demo-Foraminoscope (ETFS8437150C) comes with an outer diameter of 8.4 mm and has a length of 150 mm as well as a working channel of 3.7 mm. It is compatible with alle TESSYS®Std. instruments and with a variety of iLESSYS®
  • Connection via USB/Mini-USB to a computer or mobile device. Software provided by joimax®.
Demo-Endoscope

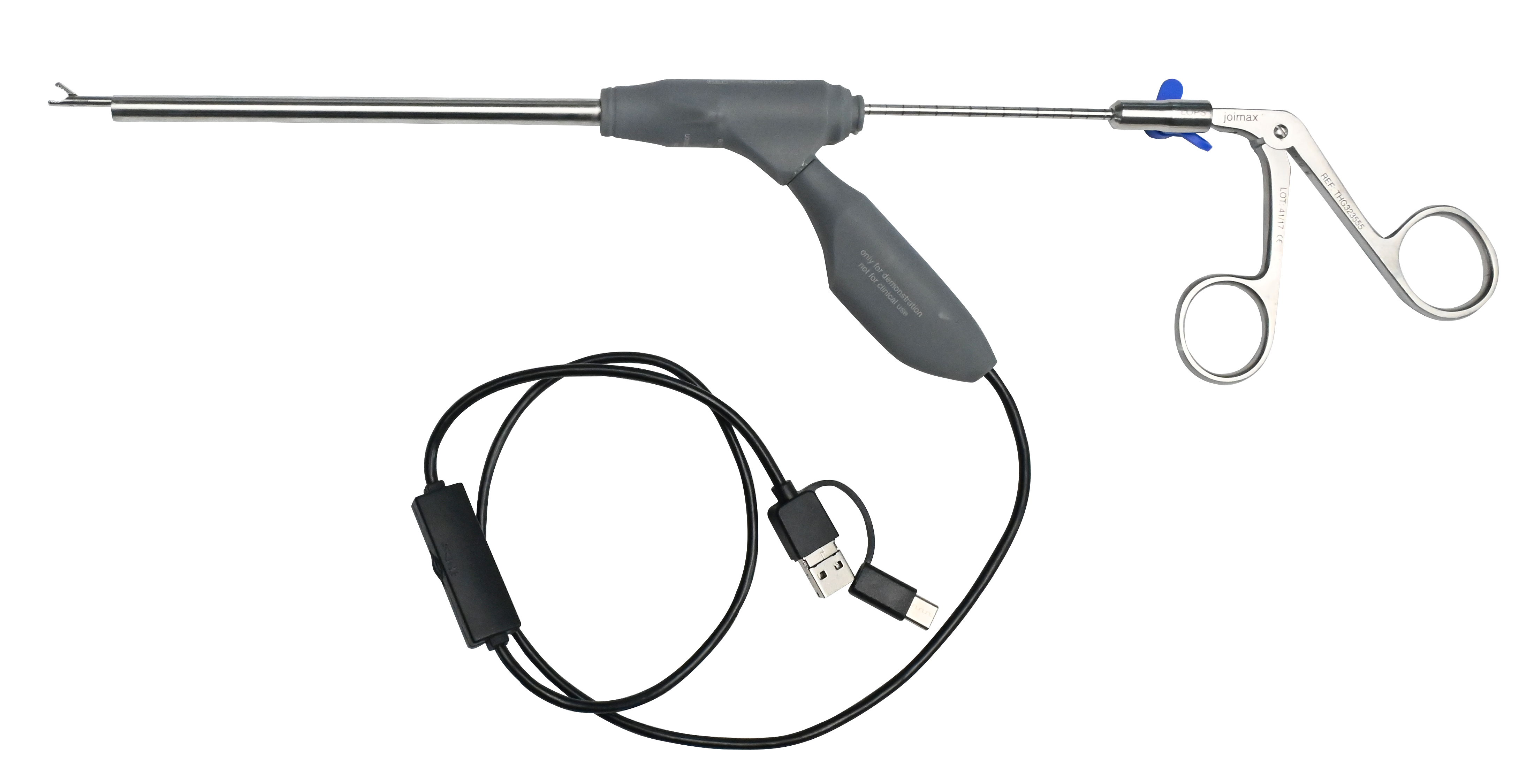

Demo-Endoscope-with-Grasper-Forcep

tissue Models

The Tissue Models are specifically designed to demonstrate endoscopic methods step-by-step at the lumbar spine using TESSYS®, iLESSYS® and MultiZYTE® systems from joimax®. The anatomy and pathology (placed manually and individually) can be viewed with the endoscope in a realistic anatomical scenario.

Real Spine Training Model

The different models on offer provide a realistic training experience for endoscopic surgeons. Key anatomical landmarks and tissues can be experienced life-like, even with simulation of bleedings and CSF flow.

Basic MISS

  • For a basic decompression of the lumbar spine
  • Endoscopic / microscopic approaches
  • One level (L4-L5)
  • Pathology: Disc Herniation

    • Advanced MISS

    • For an advanced decompression of the lumbar spine
    • Customizable
    • Endoscopic / microscopic approaches
    • One level (L4-L5)
    • Bleeding and CFS
    • Complications management
    • Pathologies: Disc herniation, extraforaminal disc herniation, stenosis, complex stenosis

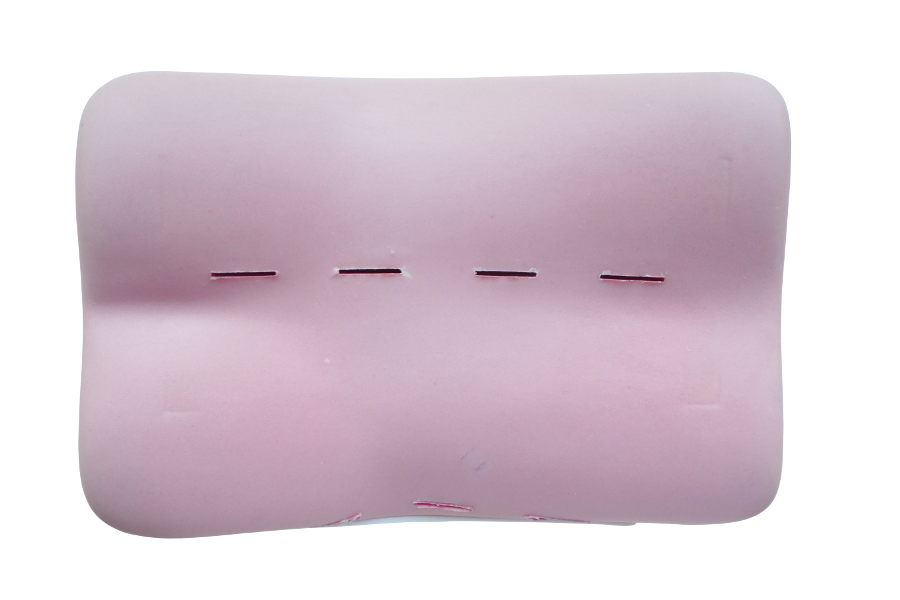

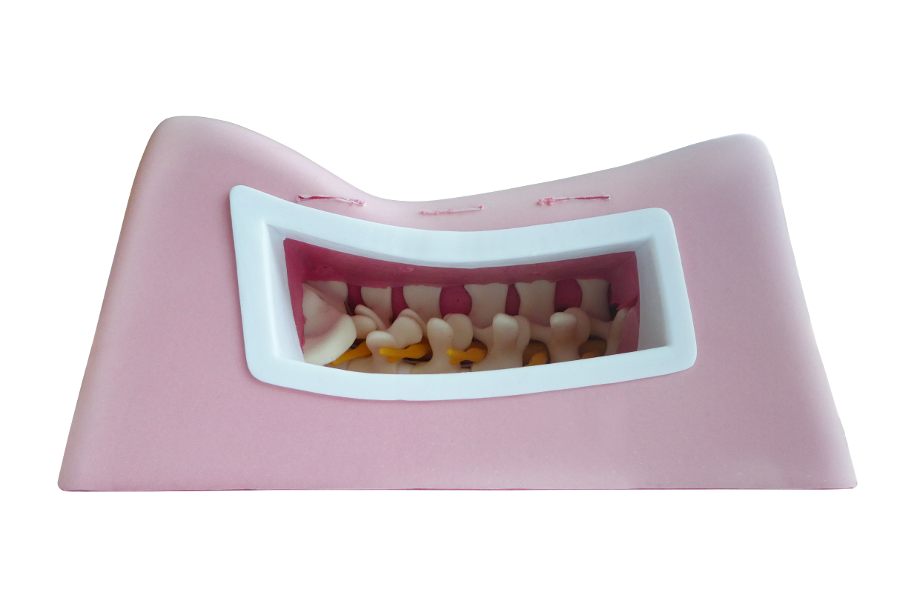

    lumbar training Model

    The model comes with a lumbar spine and respective nerves. The surface shows various incisions to insert instruments. With an endoscope the pathology can be viewed and identified. The opening on the side can be used to explain specifically the transforaminal access.

    SPECIFICATIONS

    • Lumbar Training Model
    • Tissue-like foam
    • Removable spine with nerves
    • Various incisions to insert instruments
    • Size: 17 x 34 x 25 cm (h x w x d)
    • Weight: appr. 3 kg

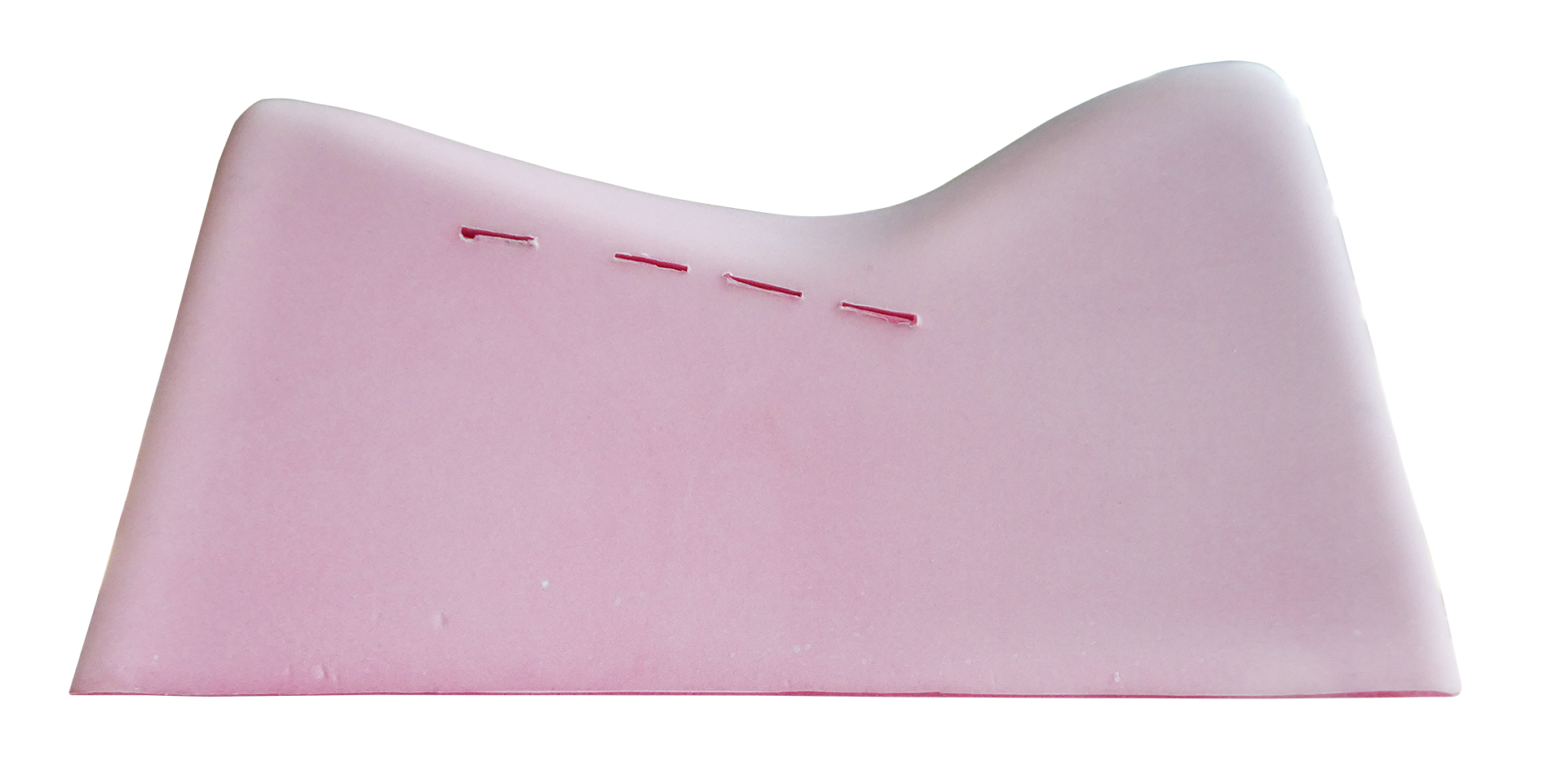

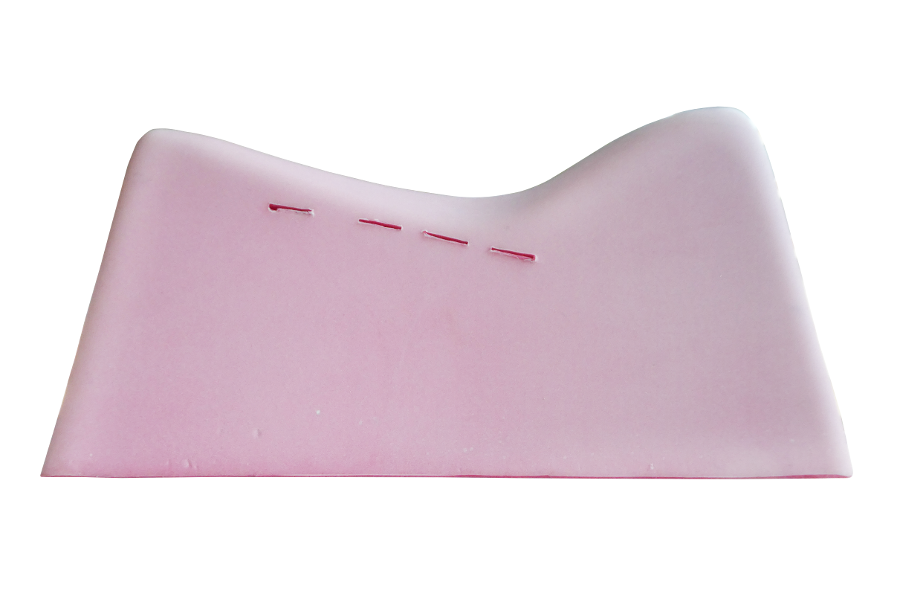

    Creaplas-Model-right

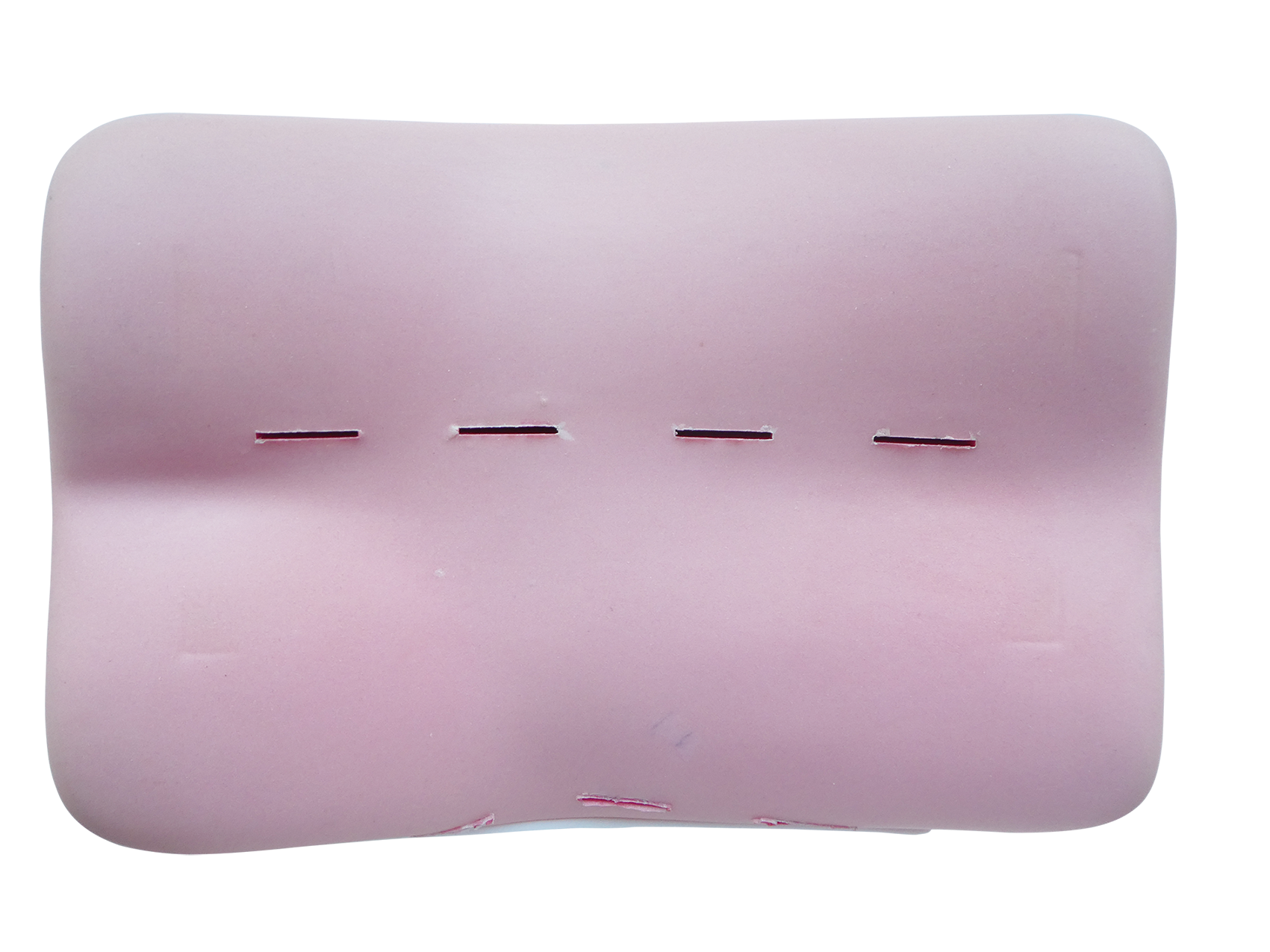

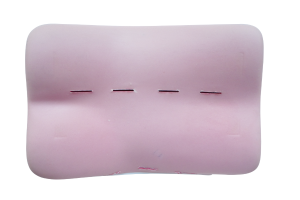

    Creaplas-Model-top

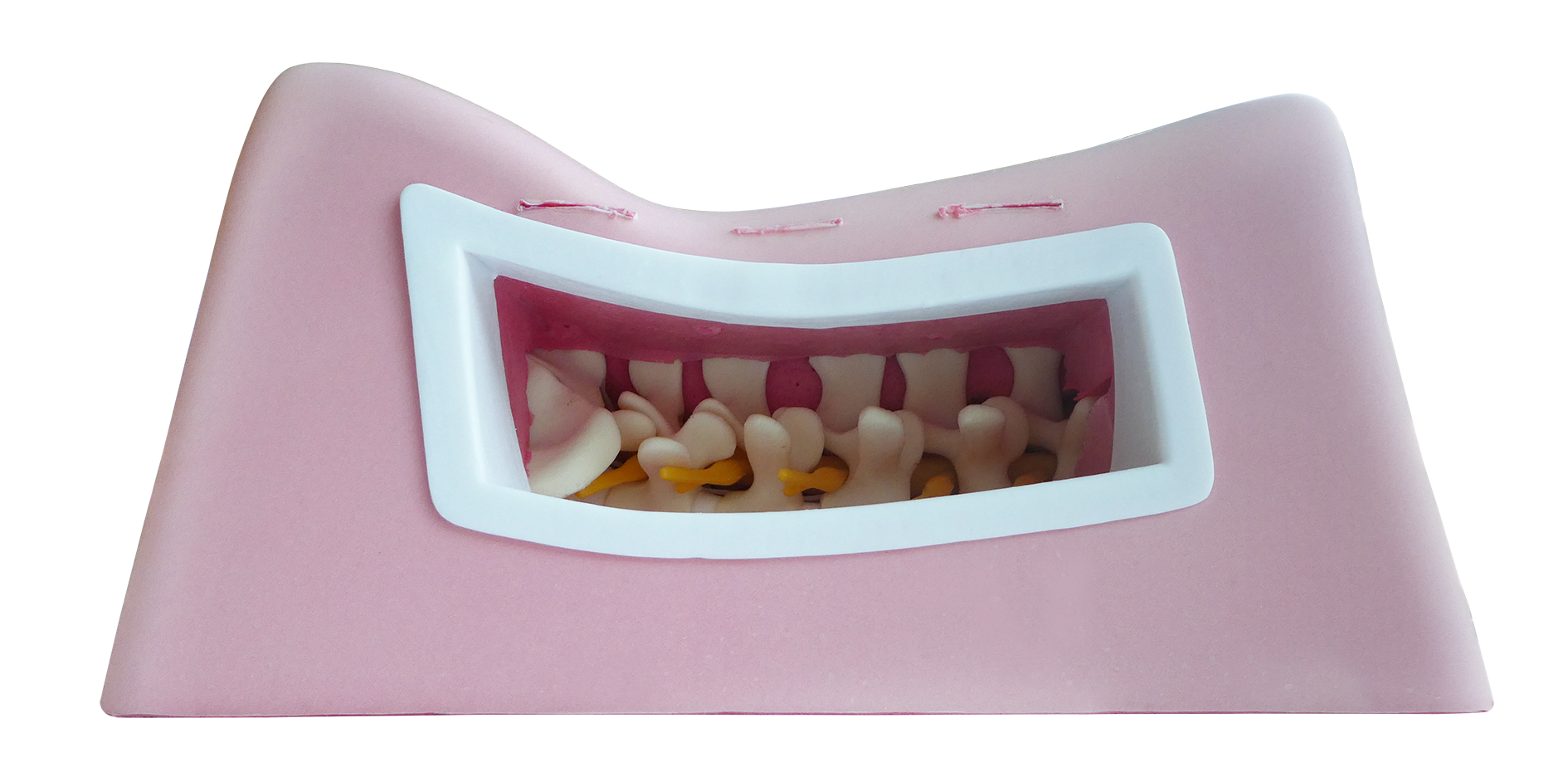

    Creaplas-Model-left

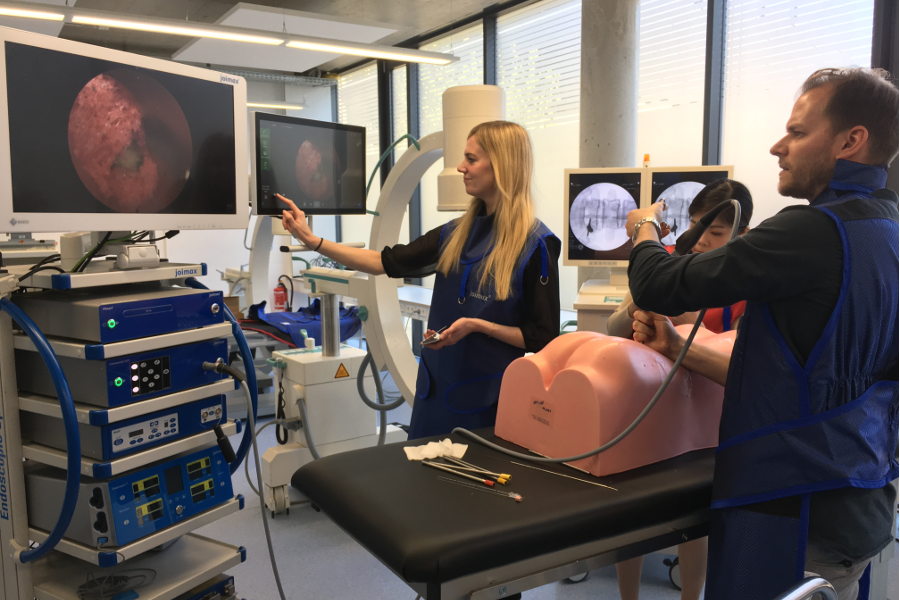

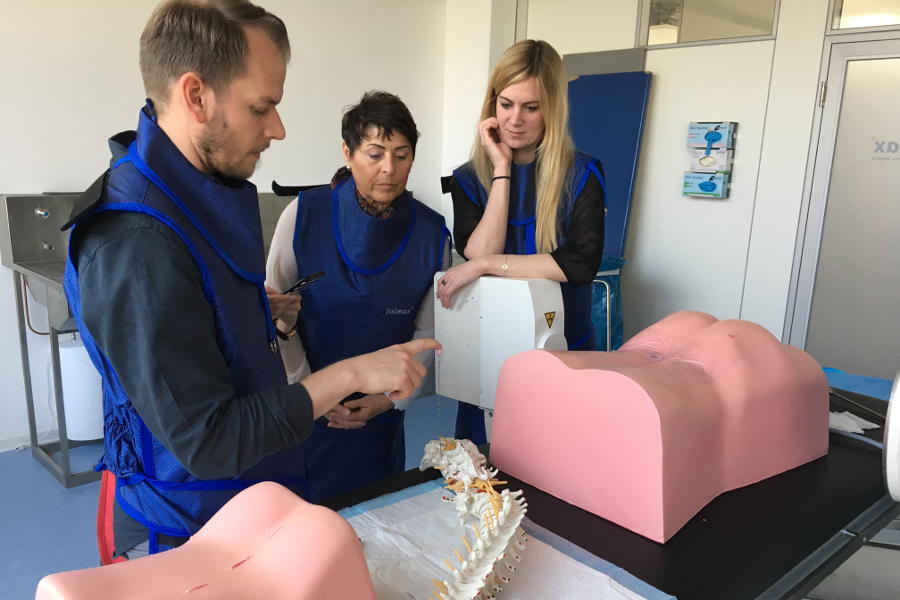

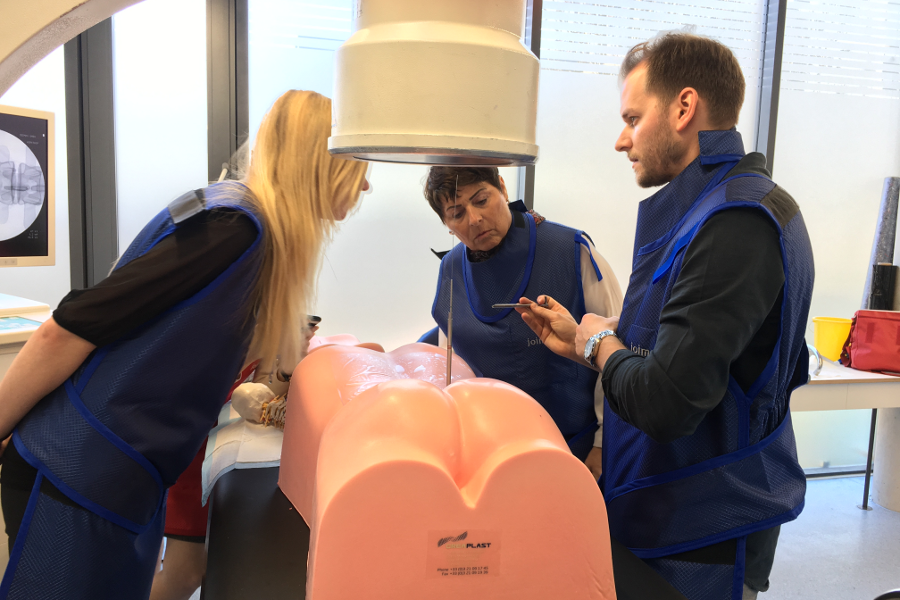

    Surgery simulator torso

    Suitable for all endoscopic approaches e.g. with joimax® TESSYS®, iLESSYS® and MultiZYTE®. The spine is radiopaque and gives excellent and realistic images under fluoroscopy. Under endoscopic view, the orientation and handling of the instruments can be demonstrated and trained. The transforaminal access can also be shown with Intracs® making fluoroscopy unnecessary. For this special option a modified model will be available. The artificial torso comes very close to reality thanks to its multi-pathologic “T10/S5 iliac crest” spine including a spondylolisthesis (grade II) at level L5/S1, an extraforaminally herniated disc at level L3/L4 and a foraminally herniated disc at level L4/L5.

    SPECIFICATIONS

    • Surgery Simulator Torso
    • Tissue-similar solid foam
    • Embedded radiopague spine and nerves
    • Size: appr. 26,5 |57,5 |38,5 cm (h / w / d)
    • Weight: approx. 5 kg

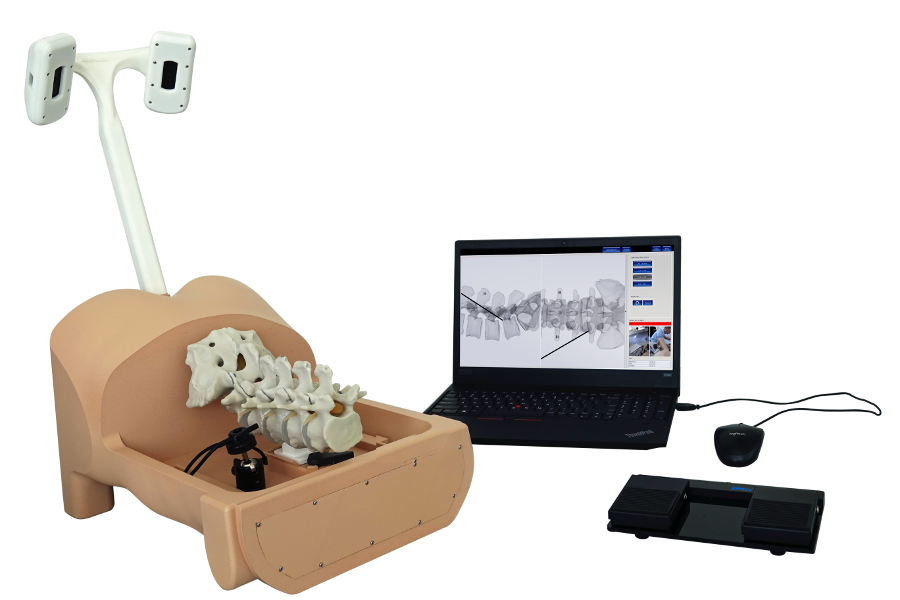

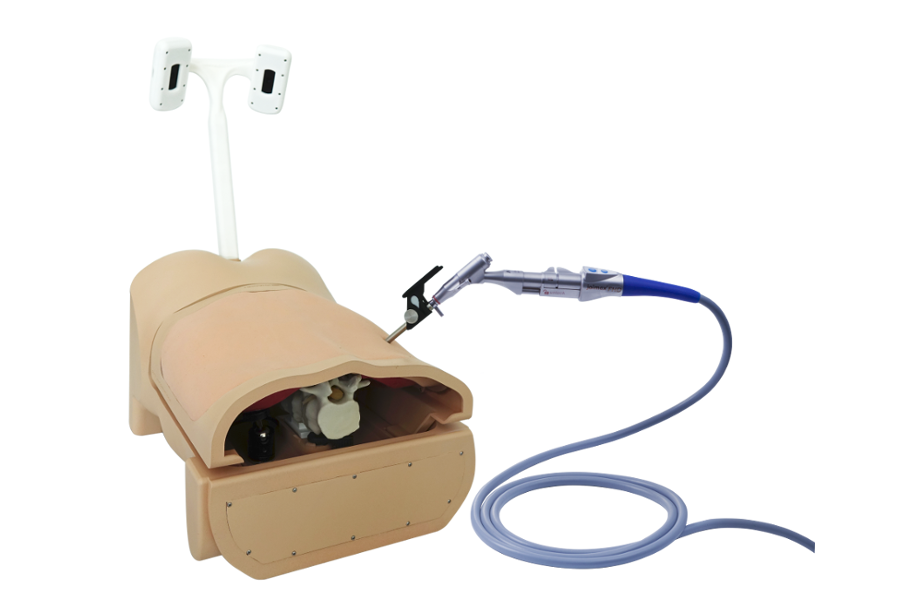

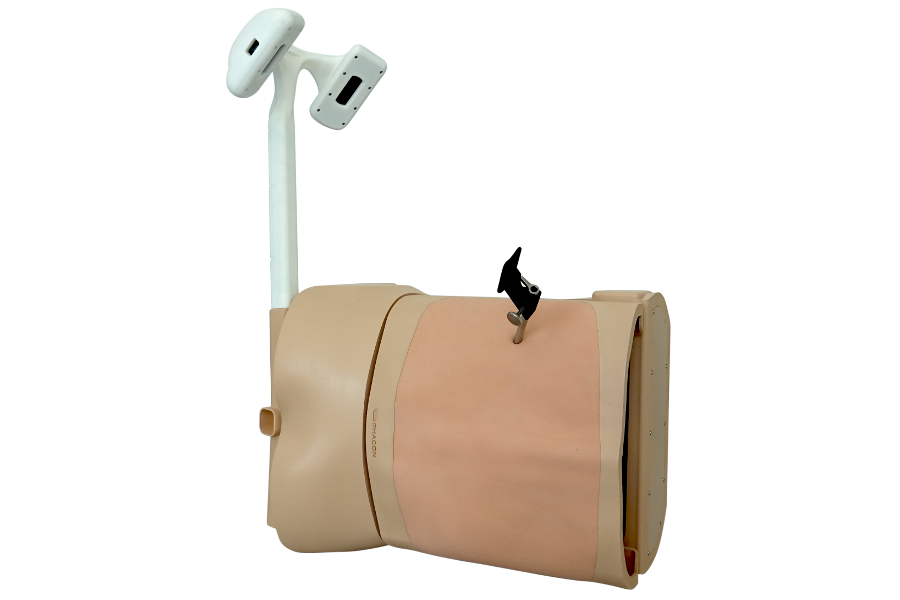

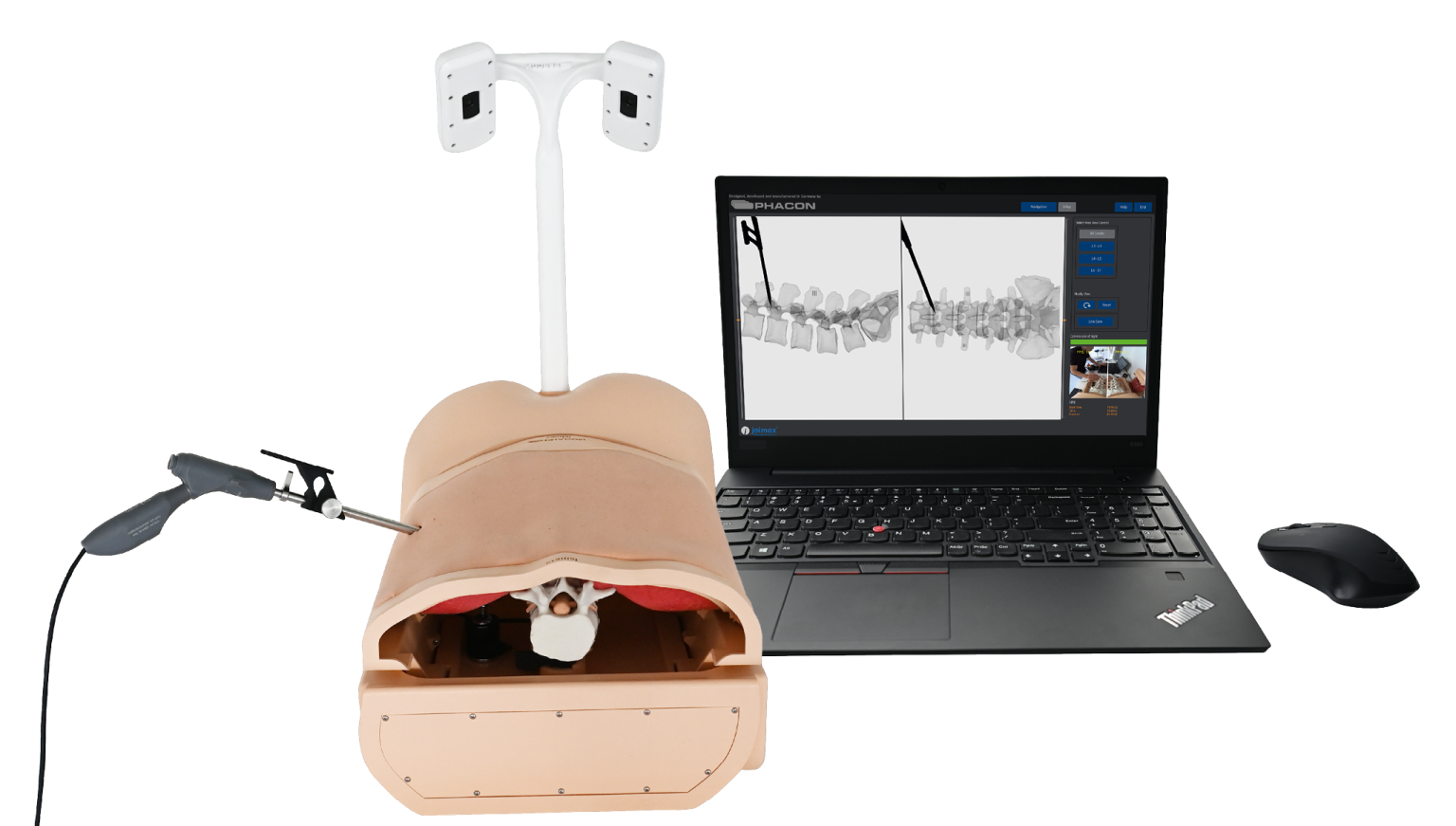

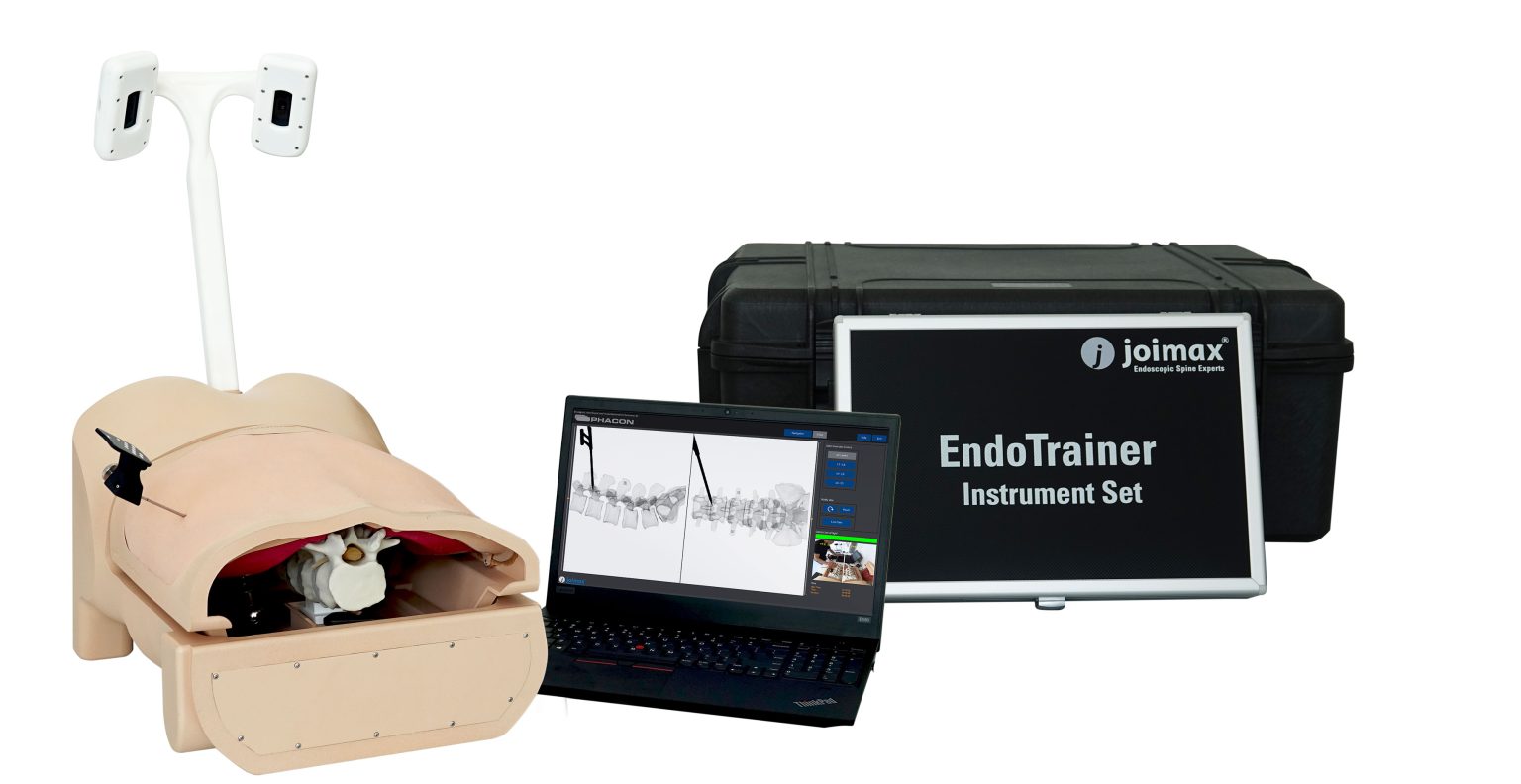

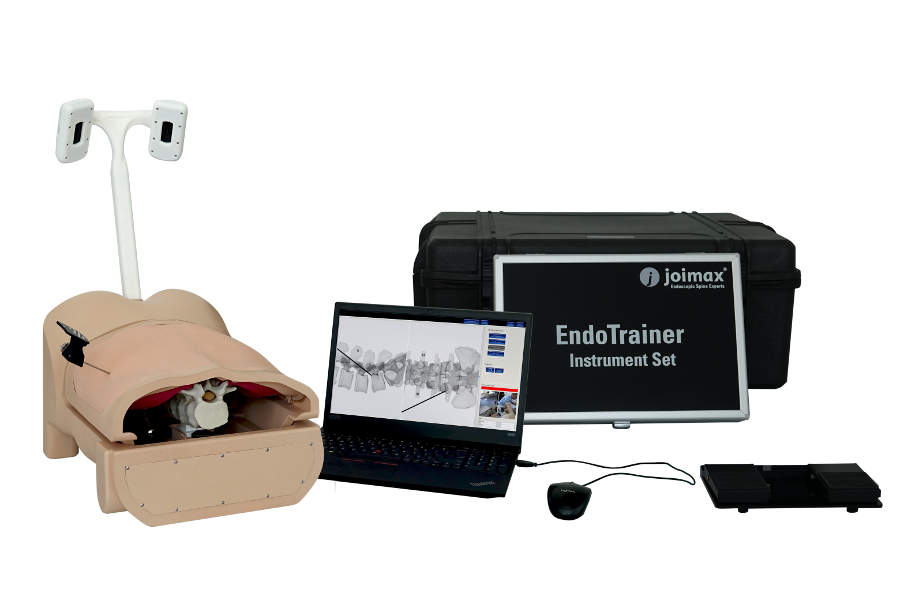

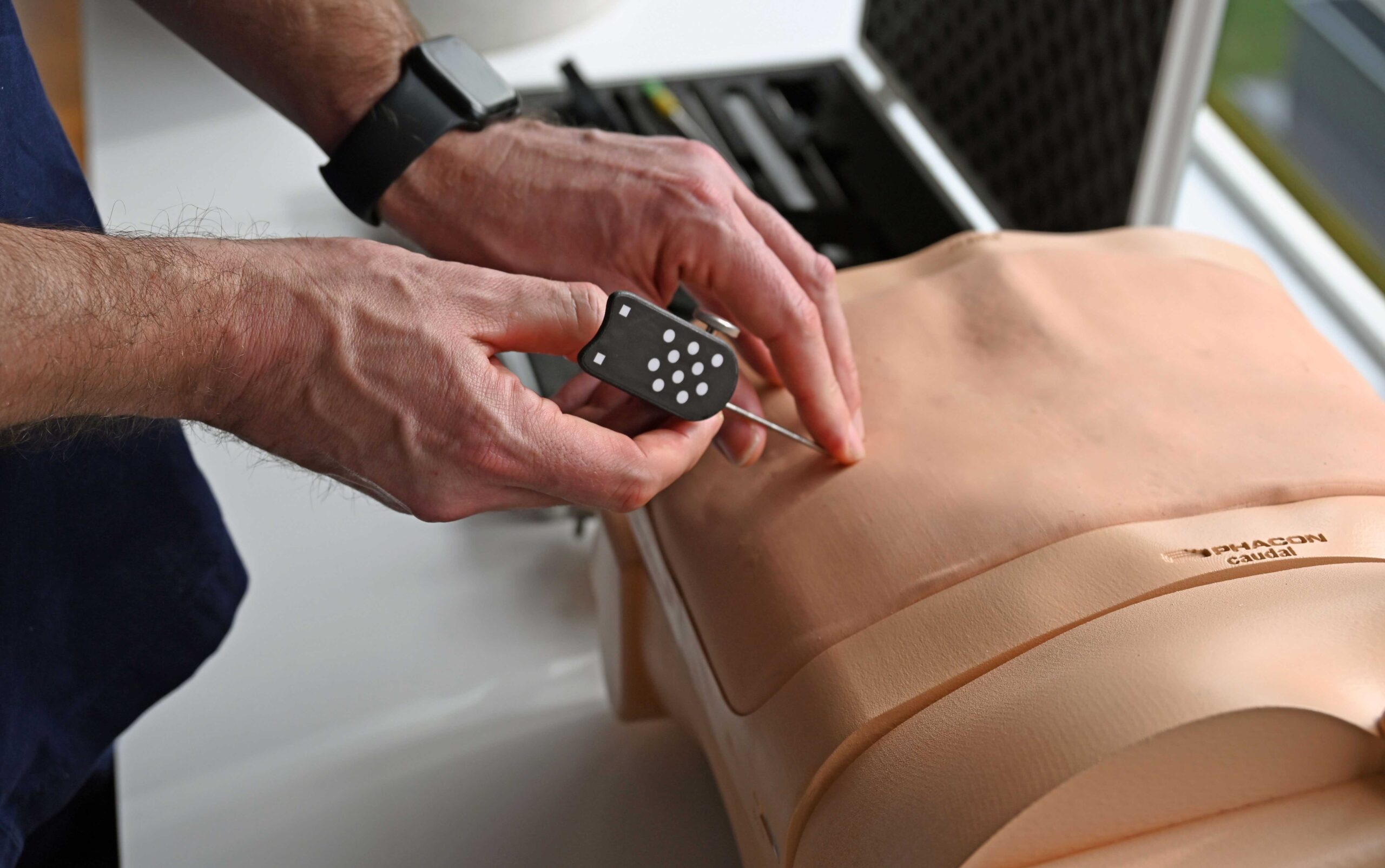

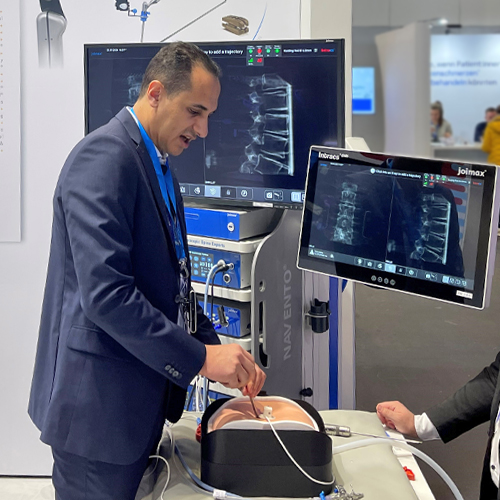

    endotrainer® plus

    With the joimax® EndoTrainer Plus, the transforaminal surgical technique TESSYS® and the interlaminar surgical technique iLESSYS® can be trained in the prone and lateral patient position. Under realistic conditions and constant monitoring via the navigation software, the fluoroscopic technique can be learned.

    BENEFITS AND ADVANTAGES

    • Virtually learn the transforaminal and interlaminar endoscopic access to the lumbar spine
    • Realistic sensory feedback
    • Train the entire OR-team

    SPECIFICATIONS

    • Navigation cameras (optical system)
    • Laptop with navigation software
    • Torso with changeable position in prone, lateral left and lateral right
    • Real spine model plus replaceable tissue insert
    • Mini Live Cam for displaying true needle position
    • joimax® instrument set including navigation pointer, needle, guiding rod, reamer and working tube
    • Calibration tools for easy set-up
